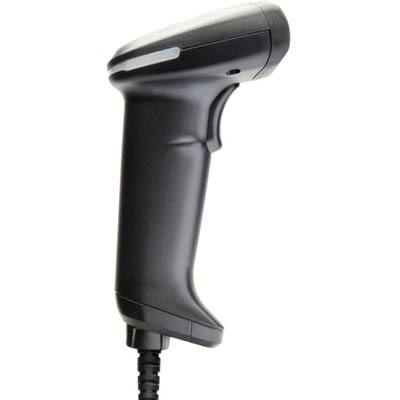

NEXA ZED 1600 Laser Scanner with stand

Code: 2000259   Brand: OPTICON
Stock level: Available
Nexa ZED 1600 USB Barcode Scanner is an affordable laser barcode scanner and comes with a hands free stand. This can be used in many Point of Sale (POS) environments including Retail & Hospitality.The ZED 1600 is an aggressive Laser barcode reader that rapidly decodes 1D barcodes even if they are low contrast or high density.It features a lightweight design that allows it to be comfortable during long shifts and its ergonomic pistol grip shape makes it intuitive to use.It is designed to handle drops from 1.5m and combined with a 3 year replacement waranty this makes it an investment that will last.The ZED 1600 thrives in fast-paced environments and works equally well when picked up or in the stand for hands free scanning.A fast versatile device the ZED 1600 is an unbeatable addition to your organisation.Hands free stand included.This product has a 3 year replacement warranty.

$99.95 Ex GST

$109.95 Inc GST

EACH

Add
Specifications
SPECIFICATIONS
  • Scan Engine: Red Laser
  • Light Source: 645-664 nm visible laser diode
  • Scan Pattern: Single Line, Bi-Directional
  • Scan Rate: 100 Scans/sec
  • Resolution: 0.076 mm
  • Depth of field: 20 - 895 mm (res. 1.0 mm / 39 mil), 0 - 495 mm (res. 0.5 mm / 20 mil), 0 - 300 mm (res. 0.33 mm / 15 mil), 5 - 200 mm (res. 0.25 mm / 9.84 mil), 5 - 90 mm (res. 0.15 mm / 6 mil), 10 - 60 mm (res. 0.127 mm / 5 mil), at PCS 0.9, Code 39
  • Tilt Angle: -20 to 0 degrees, 0 to +20 degrees
  • Pitch Angle: -35 to 0 degrees, 0 to +35 degrees
  • Skew Angle: -50 to 0 degrees, 0 to +50 degrees
  • Ambient Light Immunity: Fluorescent 4,000 lux max, Direct Sun 80,000 lux
  • Symbologies supported: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 11, Code 39, Code 93, GS1-128 (EAN-128), GS1 DataBar, GS1 DataBar Limited, GS1 DataBar Expanded, Industrial 2of5, Interleaved 2of5, Matrix 2of5, MSI/Plessey, Composite codes, MicroPDF 417, PDF417
  • Programming Method: Scan Barcodes from Manual
  • Indicators: 1 x Scan Key, Visual 1 White LED, Buzzer, vibrator
  • Operating Modes: Manual Trigger, Auto Trigger, Stand Detection
  • Communication Type: Cabled
  • Interfaces: RS232 - DB9 PTF connector with external power supply, USB - Ver. 2.0, HID/COM, USB-A connector
  • Supply Voltage: 5 V +-10 %
  • Power Consumption: Max. 155 mA (typical use)
  • Drop Specification: 1.8 m drop onto concrete surface, 10 - 100 Hz with 2G for 1 hour
  • Environmental Sealing: IP42
  • Operating Environment: -5 to 50 C, RH 5 - 90 % (non-condensing)
  • Storage Environment: -30 to 60C, RH 5 - 90 % (non-condensing)
  • EMC/Safety Standards: CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC 60825-1 Class 2, FDA CDRH Class II
  • External Dimensions: Scanner 105.4(w) x 60(d) x 153.4(h)mm, Stand 53(w) x 73(d) x 112(h)mm
  • Weight: Scanner 112 g (excl. Cable), Stand 365 g
  • Colour: Black
  • OEM: OPL-43
  • Due to freight costs, some orders may incur a delivery charge and this will vary depending on the order, particularly in regional areas. Delivery costs can be confirmed at the time of order. Some items require assembly, if you need help this can be advised at the time of order. A service fee for assembly/installation may also apply. Delivery lead times may apply to some items, this can be confirmed at the time of order
