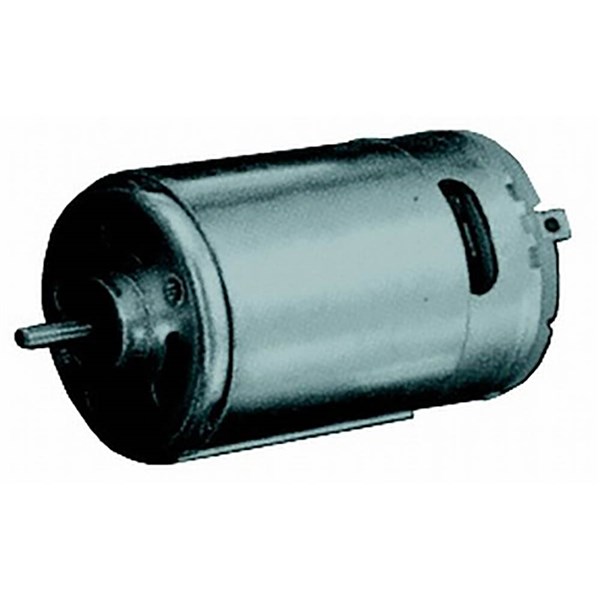

ELECTRIC MOTOR 6VDC 9000RPM 80G/CM

Code: 7118832
Stock level: Available
Each motor briefly described below is a quality product with hardened drive shaft, sintered bearings and quality commutator brushes etc
  • They are ideal for any application where a compact high torque and reliable motor is required
  • Ideal for hobbyist, experimenters, robotics, replacement, etc

$8.60 Ex GST

$9.46 Inc GST

EACH

Add
Specifications
NO LOAD • Speed (RPM): 13500 • Current (AMP): 0.55 AT STALL • Torque (G.CM): 191 • Current (AMP): 5.6 AT MAX EFFICIENCY • Efficiency(%): 49.6 • Power (W): 5.96 • Speed (RPM): 9679 • Torque (G.CM):60 • Current (AMP): 2 AT MAX POWER • Output (W): 6.44 • Speed (RPM): 7845 • Torque (G.CM): 80 • Current (AMP): 2.6 DIMENSIONS • Diameter: 27.6mm • Total Length: 51mm • Shaft Length: 12.5mm • Shaft dia: 2.3mm • Mounting thread dia: 2.6mm
