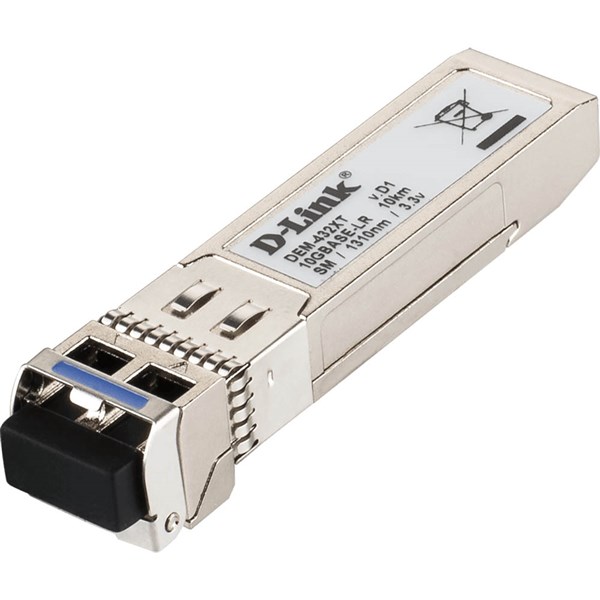

D-LINK DEM-432XT 10GBASE-LR SFP+ TRANSCEIVER (10 KM)

Code: 7111734   Brand: D-LINK
Stock level: Available
The D-Link DEM-432XT is hot-swappable SFP+ transceivers that plug into SFP+ slots on switches and support 10G Ethernet
  • Enhanced Small Form-Pluggable (SFP+) form factor
  • Hot pluggable
  • Support 10G Ethernet
  • Feature Digital Diagnostics Monitoring (DDM)
  • RoHS Compliant
  • Compliant with MSA (Multiple Source Agreement)
  • Compliant with IEEE802.3ae and 802.3aq standards

$323.80 Ex GST

$356.18 Inc GST

EACH

Add
Specifications
SPECIFICATIONS
  • Accessory Type: Transceivers
  • Single mode 9/125um fibre cable: 10km
  • Form Factor: SFP+
  • Max Data Rate: 10.3125Gbps
  • Wavelength: 1310nm
  • Max Cable Distance: 10km
  • Connector: Duplex LC
  • Media: SMF
  • Transmitter Type: DFB
  • Receiver Type: PIN
  • TX Power: -8.2 to 0.5dBm
  • Receiver Sensitivity: less than -14.4dBm
  • Powerbudget: 6.2dB
  • Receiver Overload: 0.5dBm
  • Power Consumption: less than or equal to 1W
  • Extinction Ratio: greater than 3.5dB
  • DDM/DOM: Supported
  • Commercial Temperature Range: 0 to 70 degree C (32 to 158 degree F)
  • Protocols: IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI
  • Warranty: 5 Years
  • OEM: DEM-432XT
